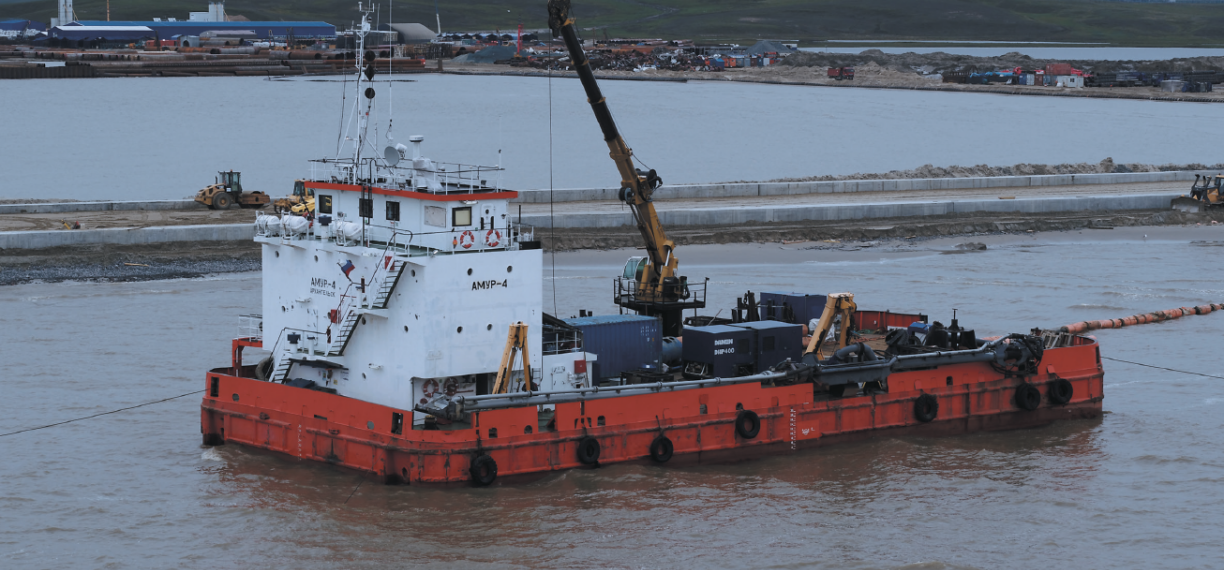

AMUR-4
Multifunctional barge
Year of construction: 1997
Key Data
Place of Built
Japan
Year of Built/Modification
1997 / 2009
Class Symbol
РМРС KE*R3-RSN
Registration Number
764704
Gross/Net Tonnage
858 / 257
Deadweight
620 tons
Main Parameters
Length of the Vessel
38,40 meters
Width of the Vessel
18 meters
Height of the Side
3,30 meters
Draft
1,60 / 2 meters
Propelling Machinery
Auxiliary Engine
Caterpillar C9, 2 x 162 kW
Production Capacity
Soil group by development difficulty
I – III
Suction Pipe Diameter
Ø 350 mm
Water Pump Capacity
2,000 m³/hr
Refueling System
Ø 450 mm, length up to 500 m
Soil Pump Engine
Caterpillar C15, 403 kW
Hydraulic Dredge Pump
D3503
Hydraulic Dredge Pump Engine
IVECO CURSOR, 200 kW
Swingwinch System
Anchor
MASADAS type MSW-3D, 2 units
Traction Force
5,50 tons
Chain, Wire Cable
Ø 32 mm, length 125 m, 2 units
Mooring Winch Bow/Rear
2 units x 110 kW
Traction Force
25 tons
Anchor
Delta Flipper, 2,50 tons
Lifting Equipment
Deck Crane
HLRV 200/3SL 11, 20 tons
