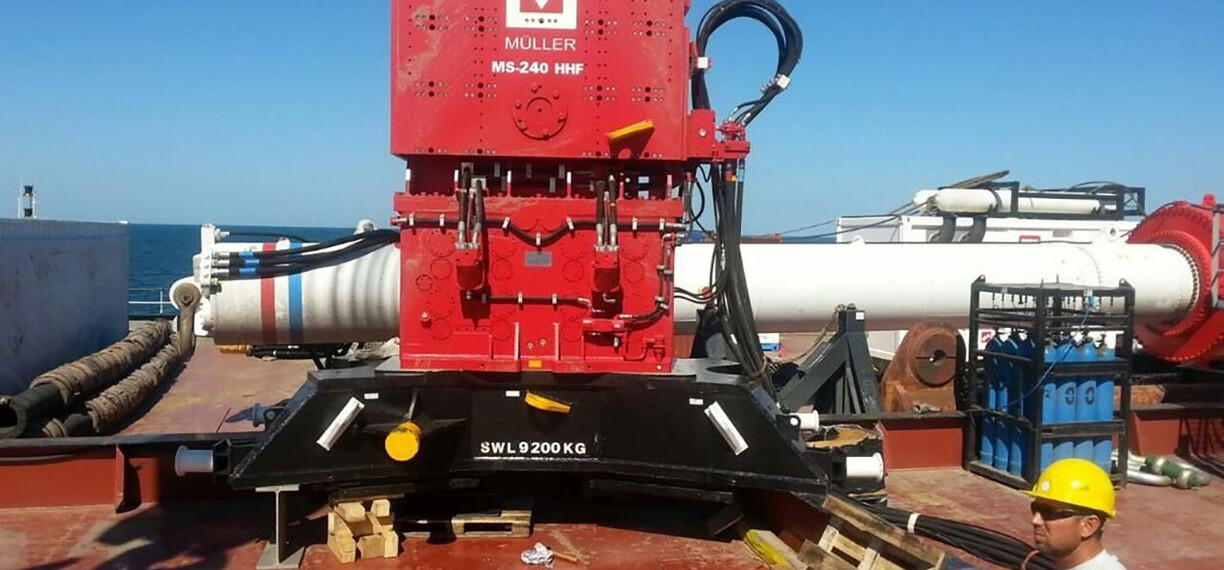

Vibratory Hammer Muller MS 240 HHF

Вибропогружатель
Фотография новости

Vibratory hammers MÜLLER series HHF. Vibratory hammers with adjustable static moment and frequency are perfectly suited for operation in varying geological conditions. The static moment can be incrementally increased with the use of additional weights. This allows the vibratory hammer to be adjusted to operate with different vibration amplitudes and frequencies while maintaining the same centrifugal force in various soil conditions.

Applications:

  • Vibratory driving in medium and heavy soil conditions.
  • Vibratory driving of heavy piling profiles.

Advantages:

  • Adaptation to changing soil conditions at the construction site by using additional weights.
  • Quick reconfiguration.

Technical specifications

Centrifugal force
5160 kN
Static moment
240 kgm
Steps
151/193/218/240 kgm
Ступени числа оборотов
1770/1560 мин
Rotation speed steps
1470/1400 min
Frequency steps
29,5/26 Hz
Frequency steps
24,5/23,4 Hz
Pulling force
1200 kN
Weight (dynamic)
12010 kg
Weight (total)
19000 kg
Vibration amplitude
25,1/32,1 mm
Vibration amplitude
36,3/40,0 mm
Working volume
1770 l/min
Pressure
350 bar
Power consumption
1032 kW
Dimensions (Length)
2300 mm
Dimensions (Width)
1510 mm
Dimensions (Height)
4190 mm
Dimensions (Waist)
832 mm
Recommended drive unit
1050 МS-U
Double/quadruple
4x180 МS-U
Clamping device
4x250 МS-U
