Hydraulic hammer IНС 280S

Оборудование
Фотография новости

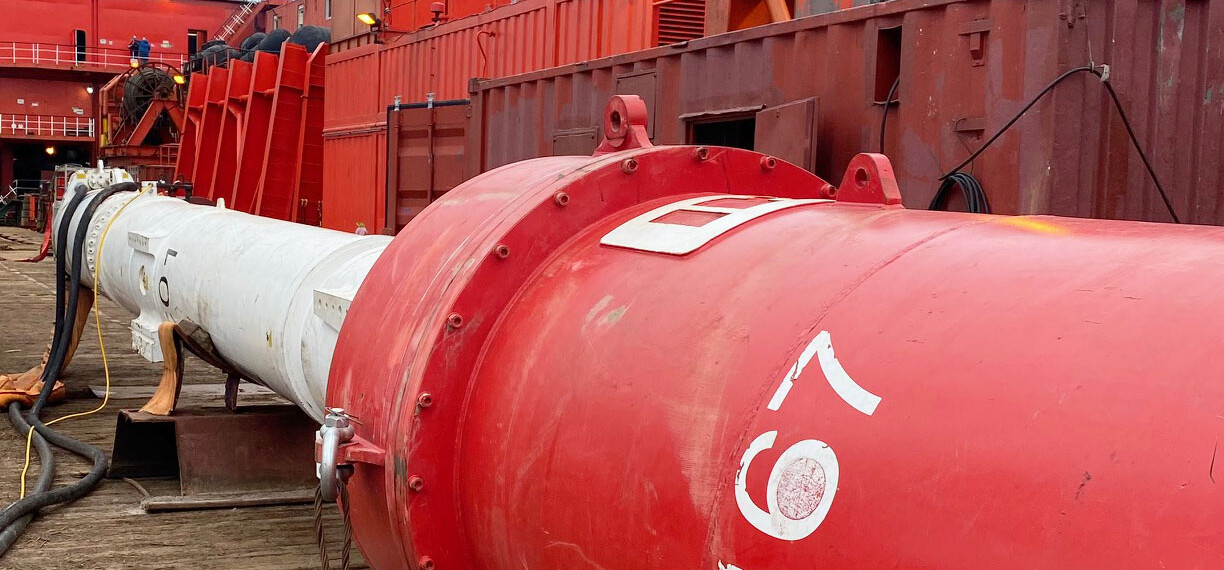

Hydraulic hammer IHC Hydrohammer S-280 is high-powered pile-driving equipment. The hydraulic system is used for performing pile driving and foundation works of any complexity. The unique design allows for driving long shelf-type piles of a large diameter. Additionally, this equipment can be utilized for rock breaking. If necessary, the hydraulic hammer can be operated underwater.



Pile-driving equipment is distinguished by a well-thought-out design, which allows the operator to control it easily and conveniently. The cooling system prevents the equipment from overheating during prolonged operation. High power enables driving piles into strong soil or concrete. Due to its low noise level, the equipment can be used in urban environments. The amortization system mitigates vibrational impacts.

Working characteristics

Maximum net energy
280 kJ
Minimum net energy
31 kJ
Impact frequency
45 impacts/min

Weight

Impact part
14 t
Hammer (including impact part in air)
31 t
Hammer (including impact part in saltwater)
24,5 t

Hydraulic characteristics

Operating pressure
310 bar
Maximum pressure
350 bar
Recommended oil flow rate
800 l/min

Gas charge pressure

Supply accumulator (Nitrogen)
140–170 bar
Return accumulator (Nitrogen)
4–6 bar
Chamber (Nitrogen or air)
20–25 bar

Safety parameters

Chamber
60 bar

Hose connections

Oil supply hose 2" (P)
М68х2 external thread
Oil return hose 2" (K)
М68х2 external thread
Air to chamber (SA)
М42х2 external thread
