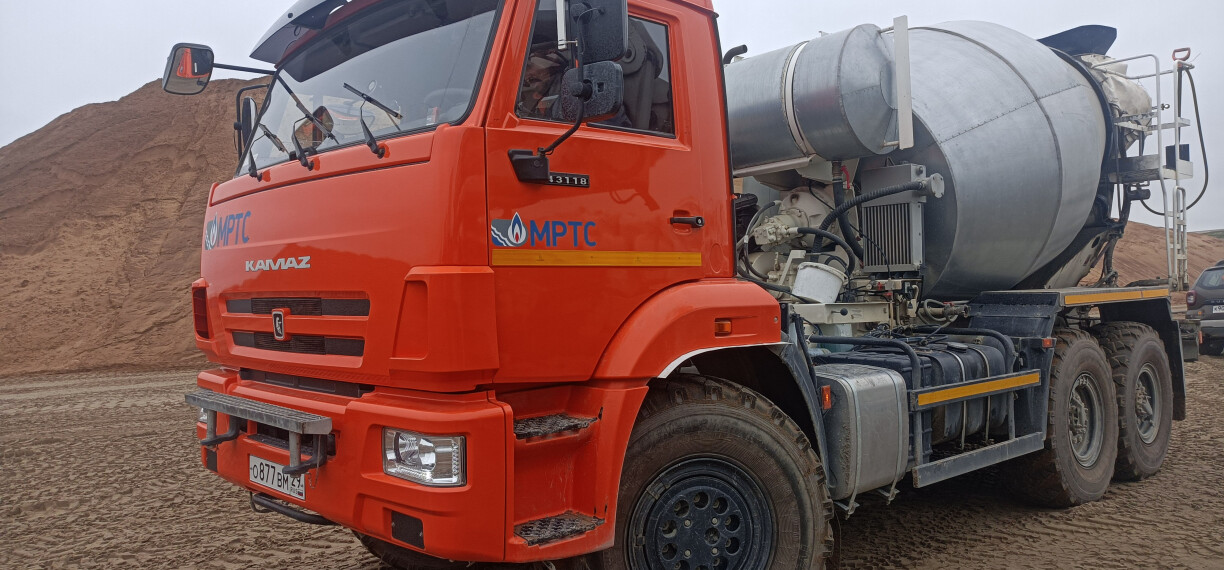

Concrete Mixer Truck 5814T6 on KamAZ-43118 Chassis
Автобетоносмеситель

The concrete mixer truck 5814T6 is designed for delivering ready-mixed concrete to consumers while maintaining the properties of the concrete mix during transit and unloading the mix at the placement site or at concrete transport facilities (concrete pumps, stationary concrete pumps, etc.).
Advantages of the Concrete Mixer Truck:
- A powerful 300-horsepower engine and 9-speed gearbox provide the vehicle with high specific power, allowing it to confidently overcome steep climbs and off-road conditions;
- The all-wheel-drive KamAZ-43118 chassis allows the vehicle to operate in harsh off-road conditions in Siberia and the Far North, as well as in mountainous areas.
Technical features:
- The drive of the mixing drum is powered by an autonomous engine.
Reliable hydraulic components:
- Planetary gearbox with a high torque reserve;
- Oil cooler with built-in electric fan and oil filter;
- Flexible coupling — damper for the hydraulic pump drive;
- Hydrostatic transmission GST-90 — PSM-HYDRAULICS, Russia.
It is possible to install electronic control in order to maintain a constant drum rotation speed regardless of the engine speed.
Technical characteristics
Volume of the mixing drum, m³
6
Rotation speed of the mixing drum, rpm
0-14
Type of drum drive from standalone engine
D-242
Capacity of the water tank, liters
600
Loading height of the mixing drum, mm
3800
Discharge height, mm
600-2000
Gross weight, kg
21600
- on the front axle
5800
- on the rear axle
15800
Base chassis model
43118-50
Chassis equipment
Engine KAMAZ 740.705-300, Transmission KAMAZ-154
Overall dimensions, mm
8620х2500х3800
