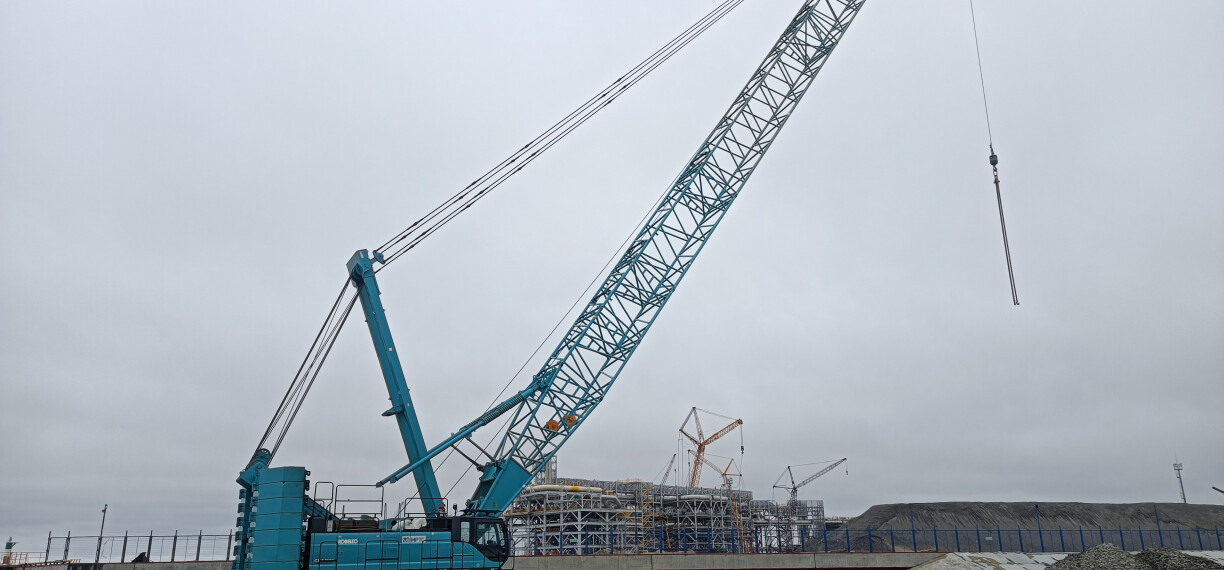

Lattice-boom crawler crane KOBELCO CKS-2500

Кран гусеничный
Фотография новости



KOBELCO crawler cranes are versatile cranes that are designed for general construction work that requires cargo movement on the construction site, as well as work with attachments such as vibratory hammers, pile driving equipment, various-purpose clamshell buckets, including for "diaphragm wall" construction, and for dredging work.



These cranes are used both in the construction of ground-based structures and as part of marine vessels.



Manufacturer: Kobelco Construction Machinery Europe B.V.



Country of origin: Japan

Crane Boom

Maximum lifting capacity
250 tons x 4.6 m
Maximum length
91,4 m

Fixed jib

Maximum lifting capacity
27 tons x 10.4 m
Maximum combination
76.2 m + 30.5 m

Extended boom

Maximum lifting capacity
47.1 tons x 12.8 m
Maximum length
91.4 m

Variable boom

Maximum lifting capacity
150 tons x 7 m
Maximum length
61 m

Maneuvering jib

Maximum length
61 m
Maximum combination
61 m + 61 m

Main and auxiliary winches

Maximum winding speed
110 m/min
Nominal pulling force on the rope
132 kN (13.5 t)
Diameter of wire rope
26 mm
Length of wire rope, main/auxiliary winch
460 m / 390 m
Type of brake
Multi-disc wet brake (option)

Working speed

Rotation speed
2.2 min-1 (rpm)
Travel speed
1.0 / 0.5 km/h

Power unit

Engine model
HINO (Toyota) P11C-VH, P11C-VN (for CKE2500G-2)
Engine power
271 kW at 1850 rpm
Fuel tank capacity
400 liters

Hydraulic system

Main pumps
4 Kawasaki pumps with variable displacement
Maximum pressure
32 MPa (326 kg/cm²)
Hydraulic tank capacity
650 liters

Crane mass

Operating weight
217 t
Ground pressure
111 kPa
Counterweight
90400 kg
Crane weight during transportation
from 44960 kg
